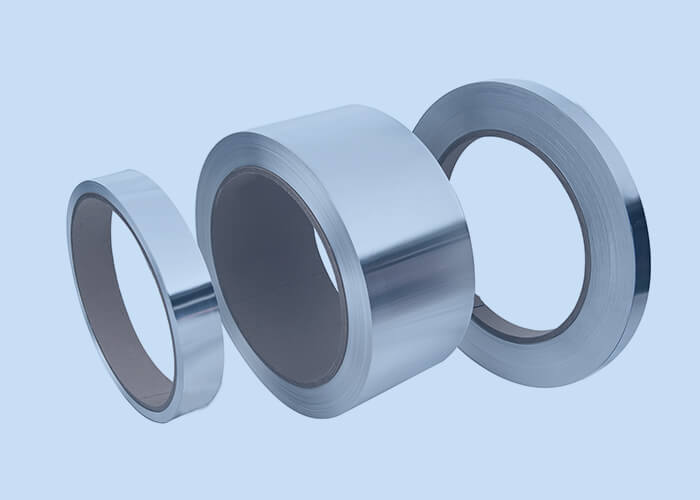

Alcutrans supplies aluminum coils and foil for transformer winding, sourced from 1000 series aluminum alloys including 1050, 1060, 1070, and 1350 grades. These materials are chosen for their strong electrical conductivity, excellent thermal performance, and reliable forming characteristics.

With conductivity reaching approximately 60% IACS, the aluminum strip provides efficient current transmission while maintaining good weldability and corrosion resistance. The alloy composition meets minimum industry requirements for strip conductors, and dimensional control ensures smooth, substantially burr-free edges. Strip sizes are produced in capacities equivalent to standard copper wire sizes.

Model: 1000 series 1050 1060 1070 1350
Specification:Thickness:0.2-3.0mm Width:20-1500mm
Application:Transformer winding
Packaging: Wooden Pallet

Available Grades & Temper

• Alloy Grades:
  • 1050 / 1060 / 1070 / 1350
• Temper Options:
  • O, H18, H22, H24

Dimensional Range

• Thickness: 0.2 – 3.0 mm
• Width: 20 – 1500 mm
• Quantity Tolerance: ±10%
• Inner Diameter (ID): 152.4 mm / 200 mm / 300 mm / 400 mm / 500 mm
• Surface Finish: Mill finish

Flat wire lengths are customizable according to customer requirements.

Performance Characteristics

• High electrical conductivity (up to approx. 60% IACS)
• Strong thermal conductivity
• Excellent forming capability
• Good welding performance
• Reliable corrosion resistance
• Smooth and nearly burr-free edges
• Designed to meet standard strip conductor industry requirements

Application Areas
Transformer aluminum foil and strips are used in:

• Variable transformers
• Low or high-voltage transformer windings
• High-frequency transformers
• Step up or down transformers
• Dry-type transformers

Packing Specifications

• Wooden pallet
• Aluminum strip packing
• Plastic spool or wooden spool
• EPE and kraft paper wrapping
• Custom packaging available according to customer requirements

Standard spool specifications are available, and packaging can be arranged based on client needs.
