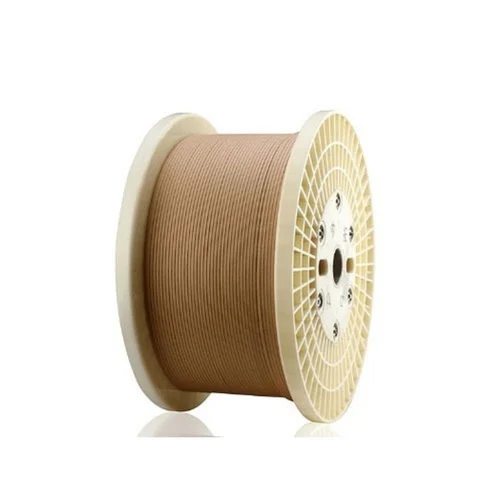

Paper Covered Winding Aluminium Wire features an aluminum conductor wrapped with cable insulation paper to form a secure insulating layer. The wrapping structure is carefully controlled to meet defined layering and spacing requirements.

• The insulation consists of a minimum of three layers of paper tape.
• When more than three layers are applied, the innermost and outermost layers must be fully covered and wrapped, while the intermediate layers may be applied with a controlled gap.
• For standard wrapping, the gap between layers must not exceed 2 mm.
• When the paper tape width is 9.5 mm or greater, the maximum permissible gap is 3 mm.

This structured wrapping approach ensures consistent insulation integrity and performance reliability.

Diameter Range (mm): round:1.0-7.0mm flat:a:0.9-10mm b:3-35mm
Insulation Material: Kraft electrica paper / Nomex paper / HPI-Green / Mark paper.etc

Performance Benefits
Paper insulation winding wire offers the following advantages:

• Strong resistance to abrasion and solvents
• Excellent electrical performance
• Superior heat shock resistance, adhesion, and flexibility
• High cut-through resistance
• High voltage resistance in oil environments
• Improved transformer filling coefficient
• Reduced transformer size and overall cost

Technical Specifications

• Product Name: Insulation Paper Winding Wire
• Conductor: Aluminum Wire
• Available Dimensions
• Round Wire
  • Diameter: 1.0 – 7.0 mm
• Rectangular Wire
  • Thickness (a): 0.9 – 10.0 mm
  • Width (b): 3.0 – 25.0 mm
• Insulation Paper Options
  • Kraft electrical paper
  • Nomex paper
  • HPI-Green
  • Mark paper
• Insulation Build: Available in single or double layers, with thickness supplied as per project requirements.
• Applicable Standards: IEC, NEMA, GB, JIS

Application Areas

Primarily used in:

• Oil-immersed transformer windings
• Medium and large transformer systems


Packaging & Shipping Options
Spool Options:

• 30 kg to 150 kg Poly-wood spools (250×500 / 250×600)
• PT25 to PT200 spools / bobbins

Outer Packaging:

• Carton box with pallet
• Plywood box

Packaging is suitable for sea transportation.
