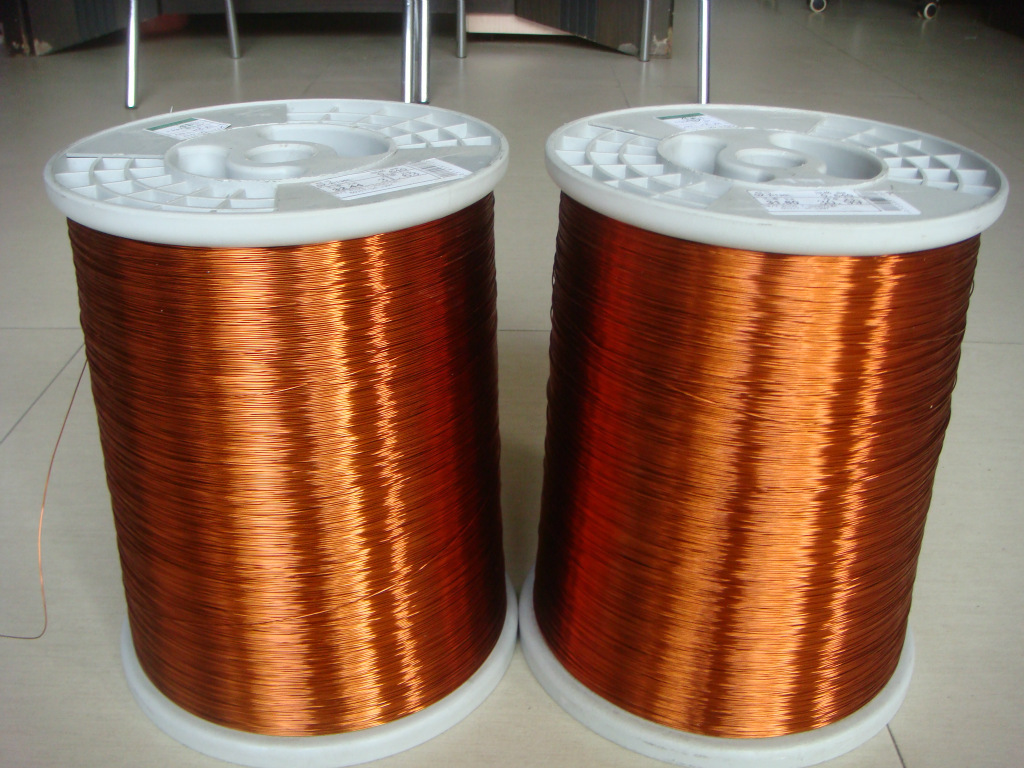

Enameled Copper Clad Aluminum (CCA) Wire combines the conductivity of copper with the lightweight advantages of aluminum. Designed for high-performance electrical applications, it offers excellent solderability, stable insulation properties, and dependable thermal endurance across various operating conditions.

Available Insulation Systems
Our product line includes multiple enamel systems to meet different temperature and performance requirements:

• Class 130 – Polyester Enamel
• Class 155 – Modified Polyester Enamel
• Class 180 – Polyester-imide
• Class 200 – Polyester-imide with Polyamide-imide overcoat
• Class 220 – Polyester-imide with Polyamide-imide overcoat

Each insulation system is engineered to ensure stable thermal resistance and long service life under demanding operating environments.

Key Advantages

• Excellent electrical conductivity
• Lightweight compared to solid copper conductors
• Strong breakdown voltage resistance
• Direct solderability and reliable tin adhesion
• Consistent and stable insulation quality
• Suitable for high-temperature environments
• Professional technical and sales support
• Sample availability for testing and validation

Technical Specifications

• Product Name: Enameled Copper Clad Aluminum Wire
• Conductor Type: Copper Clad Aluminum
• Diameter Range: 0.19 – 4.0 mm
• Thermal Class: 130 / 155 / 180 / 200 / 220
• Color Options: Natural, red, blue, green, and customizable colors
• Certificate: UL
• Standards: IEC, NEMA, GB, JIS

Typical Applications
Enameled CCA wire is widely used in:

• Sealed motors operating under high temperatures
• Modern precision instruments
• Welding machines
• Deflecting coils and electromagnetic components

Its balance of conductivity, thermal resistance, and reduced weight makes it especially suitable for applications where performance and cost efficiency are equally important.

Packaging Options

30 kg – 150 kg plywood spools
(250×400 / 250×500 / 250×600 / 250×730)
